SCI are leading a European working group to draft a CEN Technical Specification giving recommendations for the design of steel-concrete composite (SC) structures. SC structures are typically used in two forms:

  • Two steel plates with shear stud connectors joined by a grid of tie bars with structural concrete between the plates (referred to as double skin composite or DSC), and commonly used for walls.
  • A single steel plate with shear stud connectors and T stiffeners welded to the plate (referred to as single skin composite or SSC), commonly used for floors.

The recommendations, which will ultimately come under EN1994-1-1, will be largely based on the outcomes of a European (RFCS) project coordinated by SCI which studied the behaviour of these structural forms both experimentally and numerically.

SC structures are suitable for buildings and other structures whose structural system comprises shear walls, floor slabs (or decks) or a combination of shear walls and slabs/decks. SC lends itself to offsite fabrication and modularisation using standardised components, leading to schedule and cost efficiency. It has proved particularly attractive where project economics are sensitive to speed of construction such as in the nuclear sector and for the core walls of high rise buildings.

In parallel, SCI is currently leading a major European project to quantify the cost and time benefits of SC construction and to build European fabrication and site construction expertise in this structural form.

For further information, contact Bassam Burgan: b.burgan@steel-sci.com.


SCI have formed a European working group to draft a CEN Technical Specification
Contents
Featured Article
STROBE Survey
NEW AISC Standard
NEW Presentation Available
Bespoke 'blind' Connectors
Members in the News
Members Advisory Desk
SCI Advisory Q&A
SCI Webinars, Courses
& Events
Publications
New Members

SCI Courses
Steel Connection Design Second Order Effects
7 & 9 July
10:00-12:00 - Both days
New Online Course
Steel Connection Design Connection Stiffness
14 Jul 20
Member Only webinar
Steel Connection Design Nominally Pinned Connections
21 & 23 July
10:00-12:00 - Both days
New Online Course
Steel Connection Design Steel Design at Elevated Temperatures
5 Aug
11:00-12:00
FREE for all to view
View all courses
STROBE Survey

We would like to thank all those that took part in the questionnaire for European Research project STROBE (Stronger steels in the built environment) about current practice for deflection checks, this is much appreciated. Currently the results from the survey are being analysed and will be published together with all the research information later in the year.

STROBE Survey



New Structural Stainless Steel Standard Available for Public Review

A new AISC standard, Specification for Structural Stainless Steel Buildings (AISC 370), is available for public review from June 8, 2020, to July 10, 2020.

AISC 370 will encompass the design, fabrication, and erection of austenitic and duplex structural stainless steels: sections made from annealed sheet, strip, and plate that have not been subsequently cold-formed or rolled; hollow structural sections; round and square bar, annealed and cold-finished; and hot-rolled or extruded shapes. It also applies to precipitation hardening stainless steel bar.

The standard is available for download on the AISC website at https://www.aisc.org/publicreview along with the review form. Nancy Baddoo and Francisco Meza of SCI lead the drafting process of this standard.

New Structural Stainless Steel Standard Available for Public Review

Presentation now available to view on-line.

Following the North American Steel Construction Conference in April this year, the one hour webinar presented by Nancy Baddoo entitled Structural Stainless Steel for Corrosive Environments, Resilience and Aesthetic Applications is now available to view here

Presentation now available to view on-line.
Testing of bespoke 'blind' connectors designed for thin material

For many years SCI has completed testing work and analysis of 'blind' fasteners (access is only possible from one side) for the Blindbolt company. In addition to data for the UK, this has included determining design resistances for the Blindbolt - a bolt with a gravity operated toggle - in accordance with AC437, which is an accreditation specification used across North America.

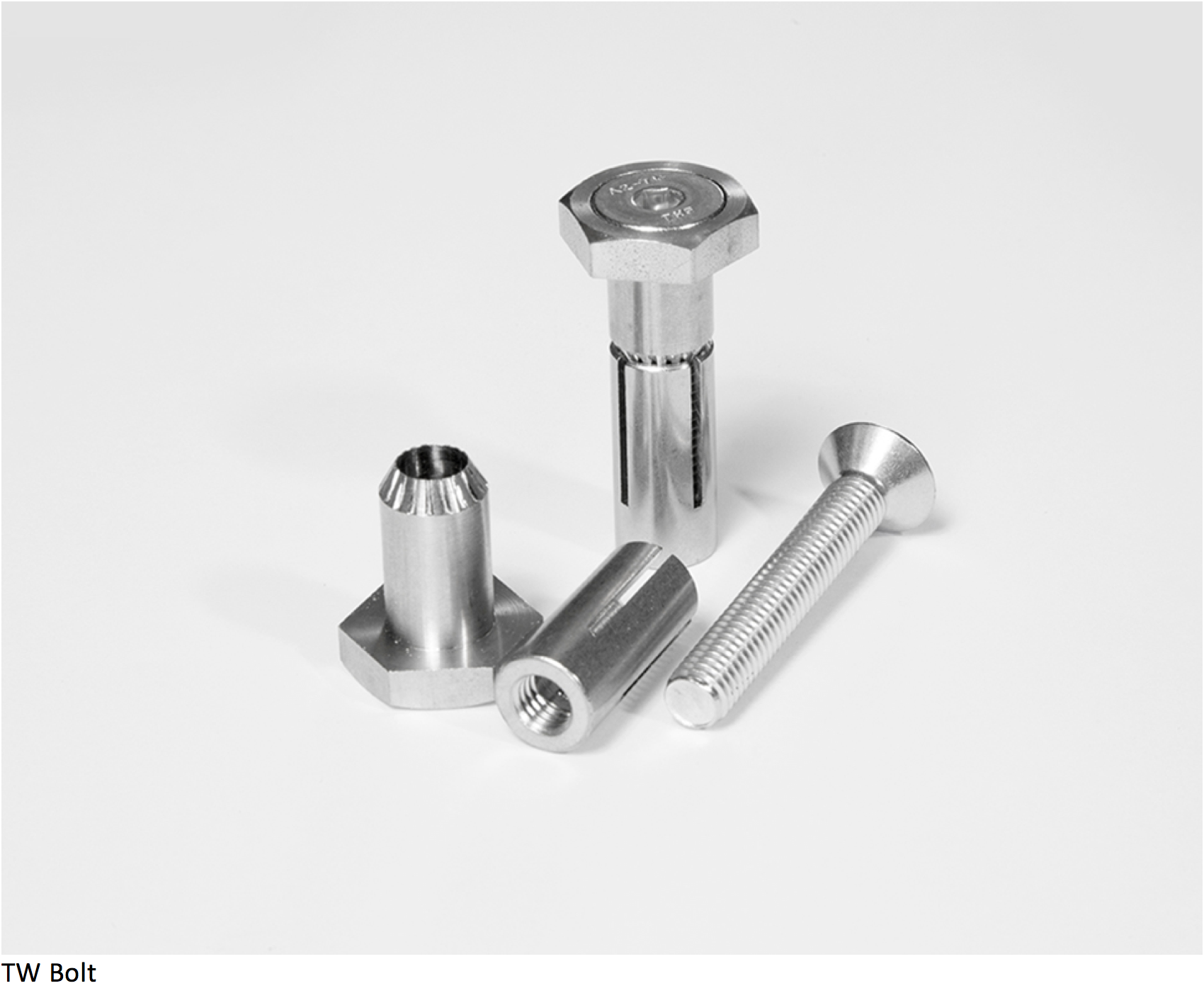

More recently, TW bolts ("Thin Wall") have been tested in tension, shear and bearing to determine design resistances for use with either BS 5950 or the Eurocodes. TW bolts have "legs" which deform on the "blind" side of the assembly as the fixing is tightened, clamping the two plies together. With a maximum connected thickness of 16 mm, the TW bolt is - as the name suggests - designed to be used with relatively thin material. Shear and bearing resistance is enhanced because of the larger diameter of the body of the connecter which participates in shear and presents a large diameter in bearing.

TW Bolt

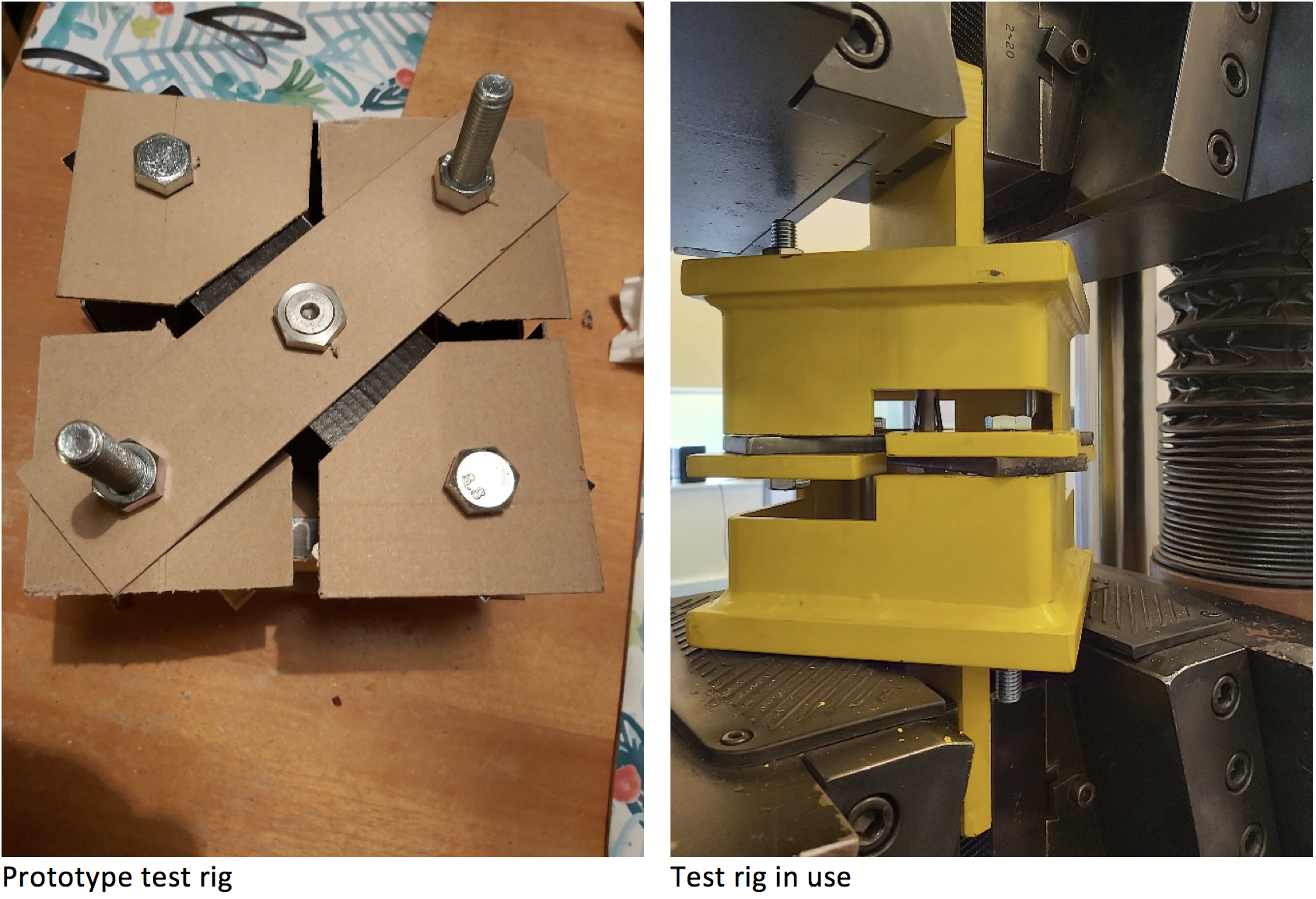

Although testing in shear is straightforward, and followed ECCS guidance, testing in tension demanded some careful thinking to develop a test rig. The ECCS guidance shows a rig arrangement in principle, but reality is rather different. The rig had to be designed to allow repeat tests, pulling the sacrificial plates apart to introduce tension in the fixing, and being able to assemble the connection before testing. After some head-scratching, a design was developed and a prototype 'fabricated' in cardboard before commissioning the final design.

TW Bolt

In addition to testing the resistance of the fixings, SCI also wanted to investigate the behaviour in tension with thin plate, and examine any possibility of pull-through. A range of thin plates was tested for each fixing diameter. With thin plate, there is no pull-through, and there is no failure of the fixing itself. The thin plates were pulled apart until huge deformation was achieved - generally as much as 10 times the plate thickness, without failure. This is usual - the design criterion for tension forces applied to thin elements is not the resistance of the fixing itself or pull through, but limiting the local deformation of the supporting member.

The testing has now been completed, and results analysed in accordance with BS EN 1990. Design resistances for both carbon steel and stainless steel TW bolts are available on the Blindbolt website.
